Brief Description:

The tube-sheet dual-purpose fiber laser cutting machine can be used in two ways, saving costs. One machine has multiple uses, it can cut both metal plates and metal pipes. Save more than 50% of space, bringing better production efficiency; using computer programming, high material utilization, saving processing costs and production costs, and saving a lot of labor.

Detailed Description:

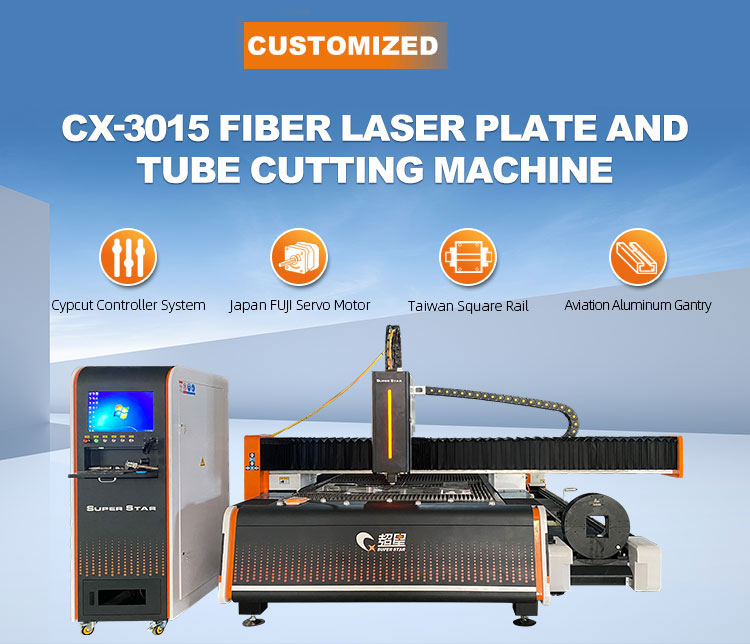

The tube-sheet dual-purpose fiber laser cutting machine can be used in two ways, saving costs. One machine has multiple uses, it can cut both metal plates and metal pipes. The metal plate cutting part adopts a gantry structure. Bilateral transmission adopts rack and pinion transmission. It has the characteristics of stable structure, good rigidity and high speed. The pipe cutting part uses a pneumatic double chuck to clamp the chuck, and the servo motor drives the rotation, which is suitable for diversified cutting of plates and pipes.

Metal plate and tube laser cutting machine features:

1. Use pneumatic double chucks to clamp the chuck and fix the material

2. The running speed is fast and can reach 80m/min.

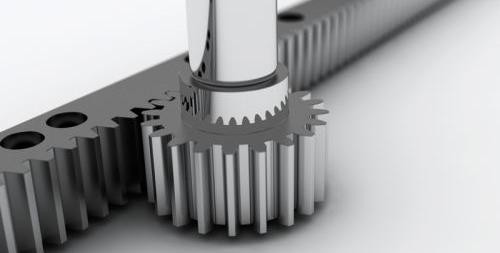

3. It adopts gear and rack transmission, which has stable structure, good rigidity and high speed.

4. Using computer programming, the material utilization rate is high, processing costs and production costs are saved, and a lot of labor is saved.

5. Adopt Cypcut Cyptube special control system.

6. Support customization

Plate and Tube Fiber Laser Cutting Machine Specifications:

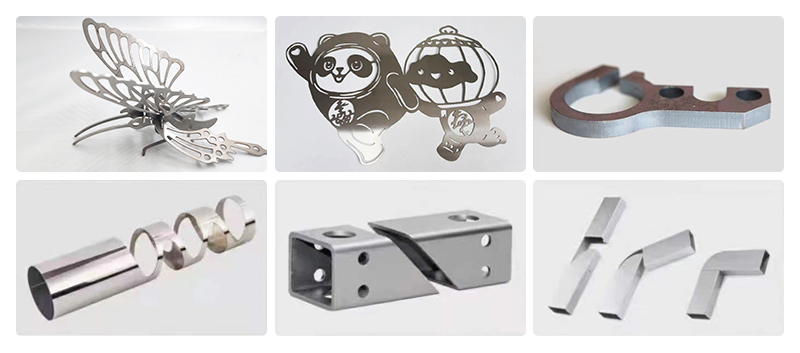

Applicable materials:

It can cut many kinds of metal sheets and pipes (pipe cutting plus pipe cutting device can be used). It is mainly suitable for fast cutting of stainless steel, carbon steel, galvanized steel, electrolytic plate, brass plate, aluminum plate, manganese steel, various alloy plates, rare metals and other materials. Optical fiber laser cutting machine with integrated sheet and tube can cut metal sheet and metal tube.
